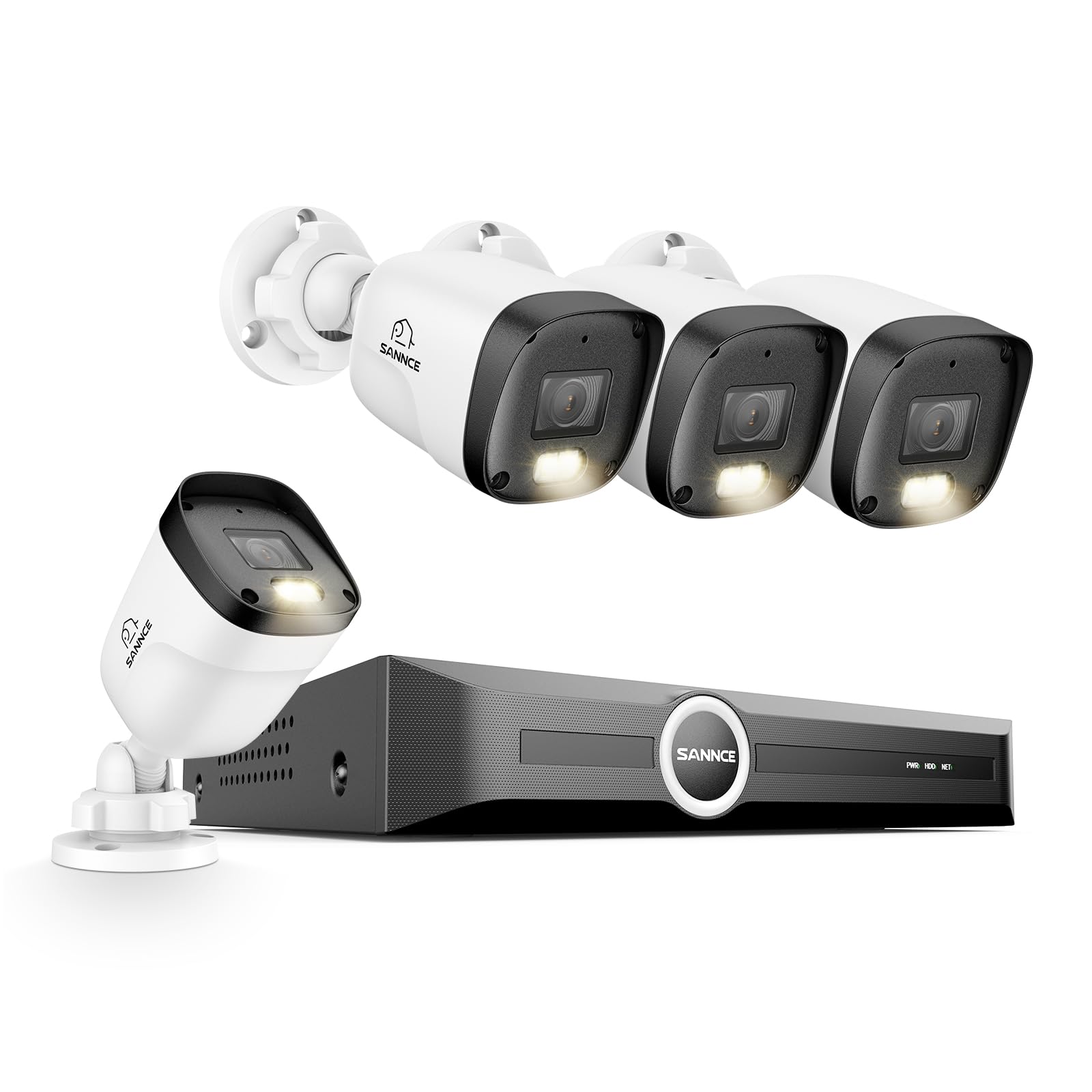

This security camera DVR kit system integrates H.265+ video compression technology with a 4K network video recorder and four 5MP (1920P) IP67-rated metallic cameras. The housing is constructed from die-cast aluminum alloy, providing resistance against corrosion, impact, and weather exposure for both indoor and outdoor mounting. Each camera delivers a resolution of 2560x1920 pixels at 20 frames per second, with a 1/2.7-inch CMOS sensor that captures clear color images under ambient lighting. The infrared LEDs support night vision up to 100 feet in complete darkness, automatically switching between day and night modes via an integrated light sensor.

The 4K NVR unit supports H.265+, H.265, H.264, and MJPEG encoding, reducing bandwidth and storage consumption by up to 50% compared to standard H.264. It is pre-installed with a 1TB hard disk drive (7200 RPM, SATA III) that allows continuous 24/7 recording for multiple days depending on camera activity and resolution settings. The system utilizes Power over Ethernet (PoE) for both data transmission and electrical supply, eliminating the need for separate power adapters at each camera location. Connection stability is maintained through a wired Ethernet interface, minimizing signal interference common in wireless setups.

An embedded AI processor performs real-time human and vehicle detection directly at the NVR, filtering out false triggers from leaves, animals, rain, or shadows. This detection logic can be configured to send push notifications and email alerts only when a person or vehicle is identified. The system supports remote access via a dedicated mobile app and web interface on iOS and Android devices, enabling live viewing, playback, and event retrieval over 4G or Wi-Fi networks. All video streams are encrypted during transmission, and the NVR firmware supports ONVIF protocol for integration with compatible third-party cameras.

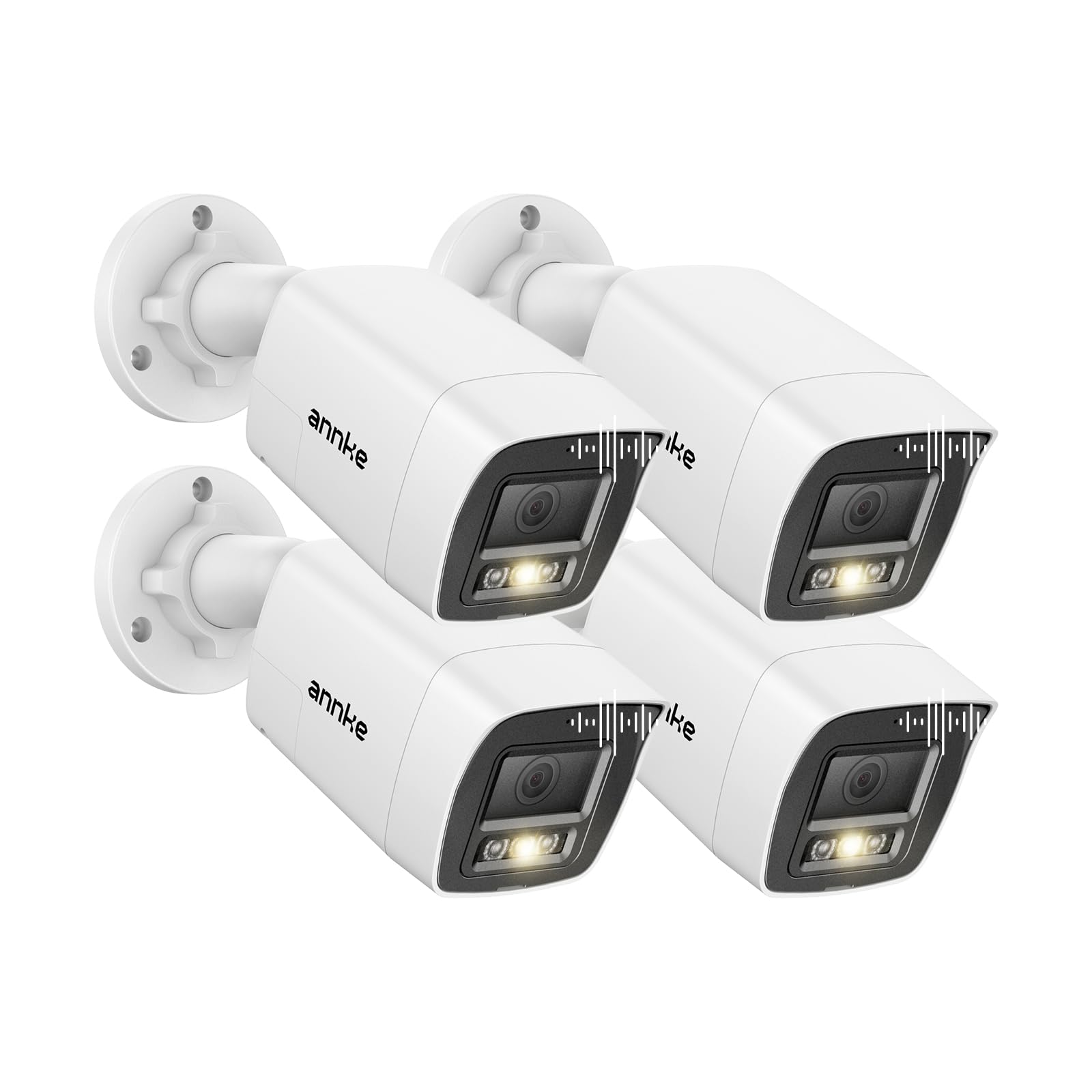

The metallic camera body features an IP67 dust and water ingress protection rating, ensuring operation in rain, snow, and dust environments. The built-in heater and fan in the NVR chassis maintain operating temperatures between -10°C and 55°C, while each camera functions from -30°C to 60°C. The kit includes mounting brackets, screws, and a pre-terminated Ethernet cable for each camera.

The system is plug-and-play: after connecting cameras to the NVR via PoE switch ports and applying power, the NVR automatically detects and configures each camera. Local recording can be exported via USB 3.0, HDMI 2.0, or VGA outputs. With a durable all-metal construction and reliable heat dissipation design, this kit is suited for residential, small business, and warehouse surveillance applications that require continuous, intelligent monitoring without recurring subscription fees.
